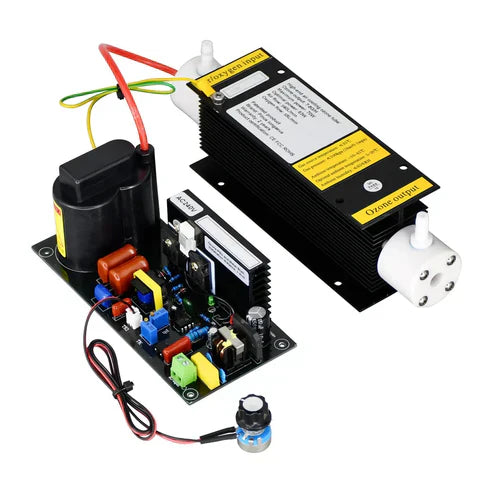

7g Ozone Tube Kit SOG-MBQT-7G | Air Cooling Ozone Generator Kit
Compartir
Patented 7g/h Ozone Generator Kit for Air Purification & Water Sterilization
The SOG-MBQT-7G Ozone Tube Kit is a patented high-end air cooling ozone generator solution designed for professional ozone applications. Featuring a compact structure, high ozone concentration, low temperature rise, and extended service life, this kit is ideal for water treatment, air purification, sterilization, odor removal, and OEM ozone equipment manufacturing.
Built with a 316L stainless steel inner tube and high-purity quartz glass dielectric, the PL-7QBAO ozone module delivers reliable and efficient ozone generation performance for industrial and commercial applications.
Why Choose This 7g Ozone Generator Kit?
✅ Patented High Efficiency Design
Smaller size with larger heat dissipation area for better cooling efficiency and longer operating life.
✅ Adjustable 7g/h Ozone Output
Flexible ozone generation for different applications and treatment requirements.
✅ Premium Internal Structure
- 316L stainless steel inner electrode
- High-purity quartz glass dielectric tube
- Pure aluminum foil external electrode
✅ Long Service Life
More than 20,000 working hours under proper operating conditions.
✅ OEM & Private Label Support
Custom logo printing and branding available for distributors and equipment manufacturers.
Product Specifications
| Item | Specification |
|---|---|
| Product Model | PL-7QBAO |
| Ozone Tube Model | SOG-MBQT-7G |
| Ozone Output | 7g/h Adjustable |
| Power | 65W |
| Cooling Method | Air Cooling |
| Air Flow | ≤40L/min |
| Oxygen Flow | ≤5L/min |
| Gas Source | Air / Oxygen |
| Gas Pressure | ≤100kpa |
| Ambient Temperature | -10℃ to 45℃ |
| Recommended Temperature | 1℃–20℃ |
| Humidity | ≤85%RH |
| External Electrode | Pure Aluminum Foil |
| Dielectric Material | High-Purity Quartz Glass |
| Inner Electrode | 316L Stainless Steel Tube |
| Discharge Gap | 0.5mm |
| Certifications | CE / FCC / ROHS |
| Warranty | 1 Year |
| Service Life | 20,000+ Hours |
Product Size & Weight
Ozone Tube
- Size: 223 × 56 × 63mm
- Weight: 0.6kg
Ozone Power Supply
- Size: 157 × 73 × 65mm
- Weight: 0.4kg
Important Installation Notes
⚠️ The ozone power supply cannot work independently.
Please correctly connect:
- Ozone tube
- Ozone PSU
- Cooling fan
before powering on the system.
This ozone tube requires proper airflow cooling during operation to ensure stable ozone generation and long service life.
Gas Connection Recommendations
Air / Oxygen Input
Recommended tubing:
- 4×7mm silicone tube
or - 5×8mm PU tube
Ozone Output
Recommended tubing:
- 6×8mm PTFE (Teflon) tube
Custom connectors are available upon request.
Indicator Lights
| Indicator | Meaning |
|---|---|
| Red Light | Power On |
| Blue Light | Working Status |
Power Supply Adjustment Notice
The ozone PSU has been pre-configured with optimized factory parameters.
Please do NOT adjust the knobs unless instructed.
TK
Controls maximum output power.
PH
Adjusts ozone output linearity.
Typical Applications
The 7g air cooling ozone generator kit is suitable for:
- Air purification systems
- Water sterilization equipment
- Ozone laundry systems
- Vegetable washing machines
- Aquaculture systems
- Odor control equipment
- Food processing sanitation
- Hotel & commercial disinfection systems
- OEM ozone equipment manufacturing
What Makes This Ozone Kit Different?
✔ High Ozone Concentration
More efficient oxidation and sterilization performance.
✔ Lower Temperature Rise
Better thermal management for continuous operation.
✔ Compact Industrial Design
Easy integration into customized ozone machines.
✔ Export Standard Quality
CE, FCC and ROHS certified for global markets.
FAQ
Q1: Can this ozone kit work with air and oxygen?
Yes. It supports both air source and oxygen source operation.
Q2: Is the ozone output adjustable?
Yes. The ozone output can be adjusted up to 7g/h.
Q3: Does this product require cooling?
Yes. A cooling fan is required during operation.
Q4: Can you customize connectors or branding?
Yes. OEM customization and logo printing are supported.
Q5: What industries commonly use this kit?
Water treatment, air purification, food sanitation, laundry systems, and industrial odor control.
